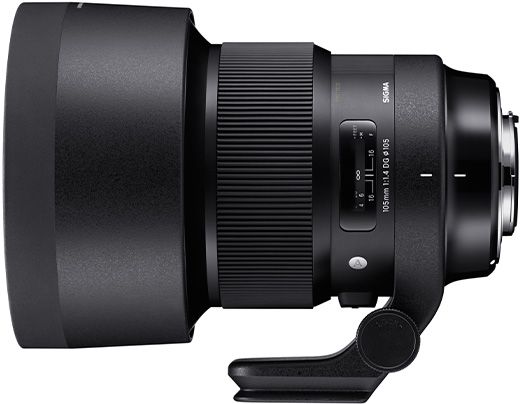

Sigma | Sigma 105mm f/1.4 DG HSM Art Lens
Welcome Guest [Login] or [Sign Up]
Cart: 0 items worth $0.00

Leading the way in F1.4 brightness

The flagship of the F1.4 Art series

Since introducing its first SIGMA Global Vision F1.4 lens in 2012, the 35mm F1.4 DG HSM | Art, SIGMA has been adding wide-aperture F1.4 options to the lineup. Now, with the introduction of the new 105mm F1.4 DG HSM | Art, SIGMA offers a total of nine lenses with F1.4 brightness, including six for full-frame cameras and three for APS-C cameras. SIGMA has designed all of these lenses to offer minimal optical aberration and deliver incredible resolution and stunning contrast. Boasting the longest focal length of the F1.4 Art line lenses, the new lens combines outstanding resolution with a beautiful bokeh effect. Designed with great care to ensure that both the in-focus and out-of-focus areas of the photograph are equally satisfying to the eye, this lens is truly a “bokeh master.” The SIGMA 105mm F1.4 DG HSM | Art has earned its place as the flagship of the F1.4 Art line lenses, prioritizing image quality above all to fulfill the promise of the line, delivering truly amazing optical performance.

Optical system delivering unsurpassed F1.4 performance

Ideal for portrait and astro photographies

In order to combine outstanding wide-aperture, mid-telephoto performance with F1.4 brightness at maximum aperture, this lens incorporates 17 optical elements in 12 groups—an uncommonly large number of elements for a prime lens. By including three FLD glass elements, two SLD glass elements, and one aspherical lens element, the optical system minimizes axial chromatic aberration to deliver extremely high resolution along with ample peripheral light volume. The area in focus is extremely sharp, while the area out of focus features a beautiful bokeh effect with highly natural colors, making this lens a powerful choice for portrait photography. The optical system also minimizes sagittal coma flare, making this lens excellent for capturing starry skies.



Exceptional peripheral brightness

The most effective method of ensuring ample light is to maximize the diameter of the first element of the optical system. With its large filter diameter of 105mm, the SIGMA 105mm F1.4 DG HSM | Art delivers a significantly greater volume of peripheral light than other lenses in its class. Minimizing vignetting while offering a beautiful bokeh effect, this lens is ideal for portrait photography.

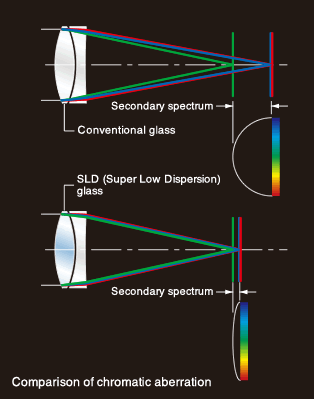

Exclusive low-dispersion glass

The degree to which light is refracted by glass depends on the light's wavelength. This fact causes different colors of light to focus at slightly different points. The result is chromatic aberration, the color fringing that is particularly noticeable in telephoto lenses. Most chromatic aberration can be removed by combining a high-refractivity convex lens element with a low-refractivity concave element. Yet residual chromatic aberration known as “secondary spectrum” may still remain. To minimize this secondary spectrum, which can be a serious issue with conventional lenses, SIGMA lenses feature up to three types of exclusive low-dispersion glass offering superior performance: ELD (Extraordinary Low Dispersion), SLD (Special Low Dispersion) and FLD (“F” Low Dispersion). In particular, FLD glass offers ultra-low dispersion in combination with high transmittance and the anomalous dispersion characteristics of fluorite. Meticulous deployment of these types of exclusive low-dispersion glass and optimization of power distribution gives SIGMA lenses superlative image rendition undiminished by residual chromatic aberration.




Designed to minimize flare and ghosting

From an early stage in the lens design process, flare and ghosting have been measured to establish an optical design resistant to strong incident light sources such as backlighting. SIGMA’s Super Multi-Layer Coating reduces flare and ghosting to help photographers produce sharp and high contrast images even in backlit conditions. The included lens hood can be attached to block out extraneous light, which can have a negative effect on rendering performance.


Professional specifications

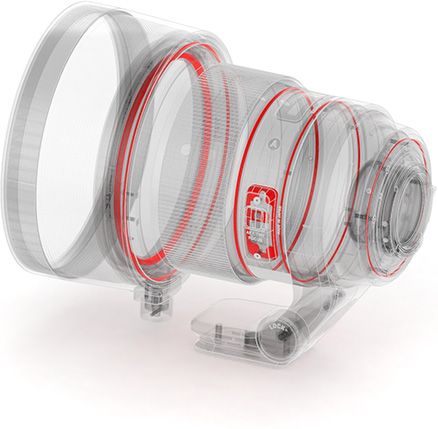

Allowing photographers to work in all types of weather

All lenses in SIGMA's new Sports line come with a hood with a high-quality rubberized connector and feature a newly designed lens cap and AF/MF switch, and are designed for intuitive use and superior functionality. Inside, HSM (hypersonic motor) delivers high AF speed and extremely quiet performance. An enhanced algorithm offers even smoother automatic focusing. Full-time manual focus override is another key feature that leaves the artistic touches in the photographer's hands.


Ease-of-use specifications

Instead of conventional ABS plastic, the exclusive lens hood features CFRP (carbon fiber reinforced plastic), a light but strong material used in the interior and exterior fittings of aircraft, among many other applications. The removable Arca-Swiss tripod socket is compatible with Arca-Swiss platforms and clamps, and its exclusive protective cover makes the lens easier to carry and use when shooting hand-held.


Fast AF with full-time manual focus

Full-time manual focus function allows the lens to be switched to manual focus simply by rotating the focus ring.

Note: The operation of full-time MF may vary based on mount type.

High-precision, rugged brass bayonet mount

The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.



Compatible with full-frame Sony E-mount cameras

The version of this lens compatible with Sony E-mount mirrorless cameras contains the same optical system as for SLRs. SIGMA MOUNT CONVERTER MC-11 is not required, as the lens performs the same functions as the converter, including in-camera image stabilization and in-camera lens aberration correction. In addition, the lens is compatible with Sony’s Continuous AF, which is not addressed by MOUNT CONVERTER MC-11. SIGMA plans to offer over time Sony E-mount versions of every full-frame prime lens currently available in the Art line, from 14mm to 135mm.

Note: This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony




Rounded diaphragm

When photographing with point light sources such as electric lights or reflections on a body of water in the background, the rounded 9-blade diaphragm helps produce an attractive bokeh effect - even at large-aperture settings.



46-megapixel Foveon direct image sensor

The 46 effective megapixel (4,800 × 3,200 × 3 layers) and 44 recording megapixel (4,704 × 3,136 × 3 layers) 23.5 × 15.7mm APS-C X3 direct image sensor captures all primary RGB colors at each and every pixel location, ensuring the capture of full and complete color. Using three silicon-embedded layers of photo detectors, stacked vertically to take advantage of silicon's ability to absorb red, green and blue light at different respective depths, it efficiently reproduces color more accurately, and offers sharper resolution, pixel for pixel, than any conventional image sensor. Since color moiré is not generated, the use of a low-pass filter is not required, meaning light and color, generated by the 46-megapixel APS-C X3 direct image sensor is captured with a three-dimensional feel.



An all-new, all-premium lineup

Superior functionality across the lineup, thanks to SIGMA's proprietary new A1 MTF measuring system.

There are three requirements for outstanding lenses: fine design, precise manufacturing and inspection that ensures compliance with all specifications. SIGMA lenses are born of well-thought-out design concepts and sophisticated, advanced Japanese manufacturing technology; the final clincher is our lens performance evaluation. We used to measure lens performance using conventional sensors. However, we've now developed our own A1* proprietary MTF (modulation transfer function) measuring system using 46-megapixel Foveon direct image sensors. Applying this system, we check each lens in our new lines at our Aizu factory, our sole production site. Even previously undetectable high-frequency details are now within the scope of our quality control inspections, allowing us to deliver consistently high lens performance. Our MTF system has the capability to test lenses for full-size 20+ megapixel 35mm digital SLR cameras.

*A1:Aizu 1





Ultra-high precision and quality—all made in Japan

Optimizing quality with our integrated production system, SIGMA is focused on making things right, with our own hands and our own techniques. We are now one of the very few manufacturers whose products are solely "made in Japan." We like to think our products are somehow imbued with the essence of our homeland, blessed as it is with clean air and water, and focused, hard-working people. We pride ourselves on the authentic quality of SIGMA products, born of a marriage between highly attuned expertise and intelligent, advanced technology. Our sophisticated products have satisfied professionals and lovers of photography all over the world, because our manufacturing is based on genuine craftsmanship, underpinned by the passion and pride of our experts.



A lens customizable to your needs

New exclusive software and USB DOCK make customization simple.

For our new product lines, we have developed exclusive SIGMA Optimization Pro software that allows the user to update the lens firmware and adjust the focus position and other parameters. The user will be able to connect the lens to a computer with a special SIGMA USB DOCK and use easy-to-operate on-screen controls to create personal lens specifications. The focus limiter will be customizable on this lens.





Exclusive Sigma Optimization Pro Software

SPECIFICATIONS

Lens Construction 17 elements in 12 groups
Angle of View 23.3°
Number of Diaphragm Blades 9 (Rounded Diaphragm)
Mininum Aperture F16
Minimum Focusing Distance 100cm
Filter Size (mm) φ105㎜
Maximum Magnifications 1:8.3
Dimensions
(Diameter x Length)
Φ115.9㎜ × 131.5㎜ / φ4.6in.×5.2in.
Weight 1,645g / 58oz.

Diffraction MTF


Geometrical MTF
