- Covers Full-Frame Sensor Size
- PL Mount, Lens Markings in Meters
- Supports Cooke /i Technology Metadata
- T1.5 to T16 Aperture Range
Wide focal length coverage
The lineup covers everything from wide angle to telephoto. Produce an entire work with SIGMA lenses alone.
Compatibility
Compatibility has been confirmed with each brand of cinema cameras.
Lenses for both S35 and full-frame
The High Speed Zoom Line is compatible with Super35, the image size standard used by typical digital cinema cameras, while the FF High Speed Prime Line and FF Zoom Line are compatible with a full-frame image circle.
Strong high-speed lens lineup
T1.5 or T2 is available in prime lenses, while T2 is available throughout the zoom range in zoom lenses. These options enable cinematographers to realize a wide range of expressive goals.
Focal Length
|
35mm
|
Lens Mount
|
ARRI PL
|
Format
|
Full Frame
|
Image Circle
|
43.3 mm
|
Maximum T-Stop
|
T1.5
|
Minimum T-Stop
|
T16
|
Horizontal Angle of View
|
Full Frame: 54.4° Super35: 38.7° APS-C (1.5x): 37.4°
|
Minimum Focus Distance
|
From : 11.8" / 30 cm
|
Iris Blades
|
9
|
Gear MOD & Pitch
|
Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch
|
Front Diameter
|
95 mm
|
Filter Thread
|
82 mm
|
Focus Scales
|
Metric
|
Focus Rotation
|
180°
|
Iris Rotation
|
60°
|
Electronic Communication
|
Yes
|
Length
|
3.43" / 87 mm
|

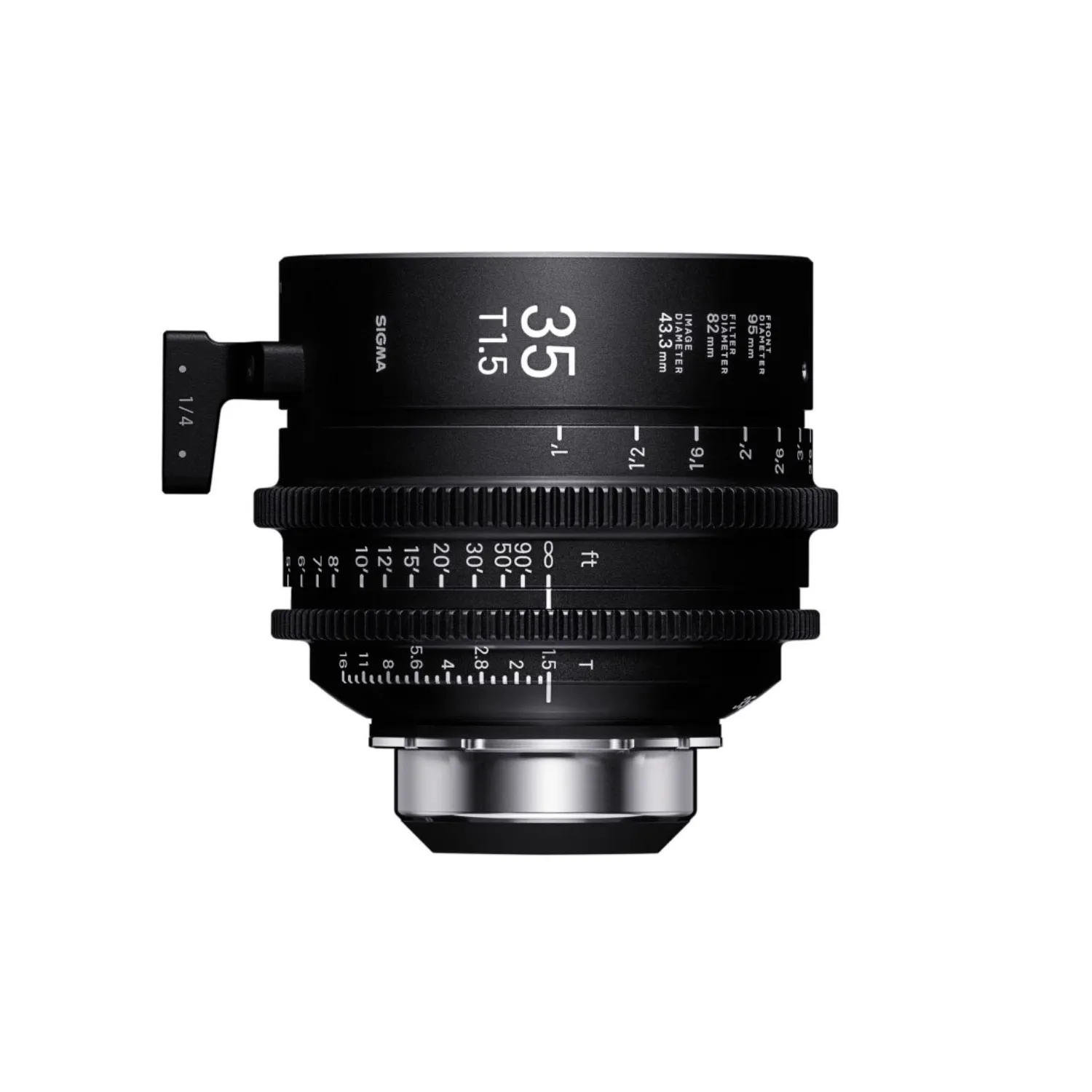

- Sigma 35mm T1.5 FF High-Speed Art Prime 2 Lens with /i Technology (PL Mount, Meters)
- Lens Cap
