- Covers Full-Frame Sensor Size
- Lens Markings in Meters
- PL Mount, T2 to T16 Aperture Range
- Supports Cooke /i Technology Metadata
These ten prime lenses range from 14mm to 135mm, and all offer T1.5 or T2 brightness. Rivaling a high-end prime set with their stunning image quality and compact construction, they also offer full-frame coverage. With this complete set of ten lenses designed for 6K-8K shooting, the FF High Speed Prime Line allows filming of various cuts without making any changes to the lighting, taking cinematography to the next level of performance.
Wide focal length coverage
The lineup covers everything from wide angle to telephoto. Produce an entire work with SIGMA lenses alone.
Compatibility
Compatibility has been confirmed with each brand of cinema cameras.
Lenses for both S35 and full-frame
The High Speed Zoom Line is compatible with Super35, the image size standard used by typical digital cinema cameras, while the FF High Speed Prime Line and FF Zoom Line are compatible with a full-frame image circle.
Strong high-speed lens lineup
T1.5 or T2 is available in prime lenses, while T2 is available throughout the zoom range in zoom lenses. These options enable cinematographers to realize a wide range of expressive goals.
|
Focal Length
|
14mm
|
|
Lens Mount
|
ARRI PL
|
|
Format
|
Full Frame
|
|
Image Circle
|
43.3 mm
|
|
Maximum T-Stop
|
T2
|
|
Minimum T-Stop
|
T16
|
|
Horizontal Angle of View
|
Full Frame: 104.3°
Super35: 82.6°
APS-C (1.5x): 80.5°
|
|
Minimum Focus Distance
|
From : 10.6" / 27 cm
|
|
Iris Blades
|
9
|
|
Gear MOD & Pitch
|
Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
|
|
Front Diameter
|
95 mm
|
|
Filter Thread
|
None
|
|
Focus Scales
|
Metric
|
|
Focus Rotation
|
180°
|
|
Iris Rotation
|
60°
|
|
Electronic Communication
|
Yes
|
|
Lens Support
|
Lens Support Foot with 1/4"-20 Mounting Thread
|
|
Tripod Mounting Thread
|
1/4"-20 Female
|
|
Length
|
4.39" / 111.5 mm
|

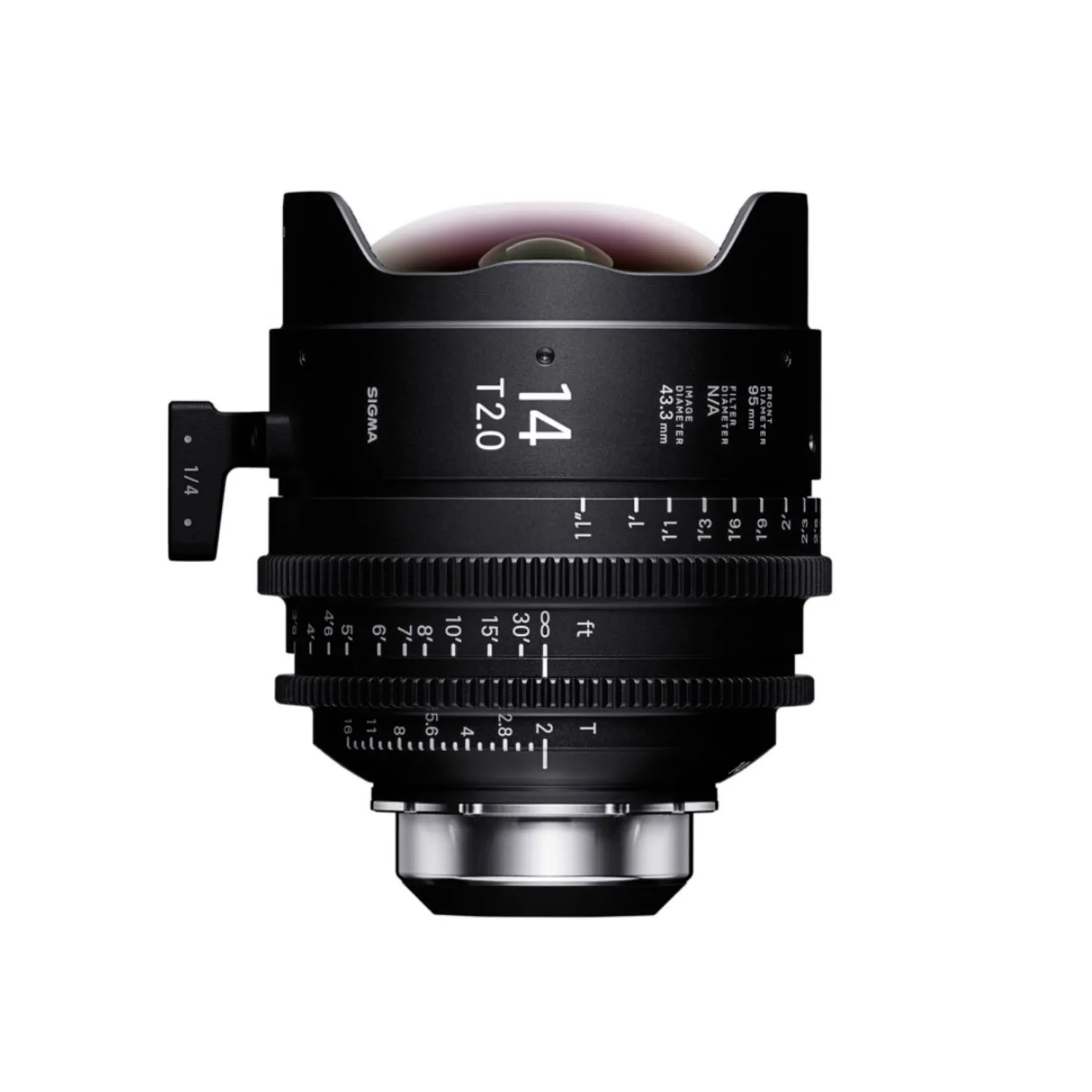

- Sigma 14mm T2 FF High-Speed Art Prime 2 Lens with /i Technology (PL Mount, Meters)
- Lens Support Foot
- Front Lens Cap
