Type

Interchangeable-lens Mirrorless Type Digital Camera

Storage Media

SD / SDHC / SDXC memory card(UHS-Ⅱ supported) / Portable SSD (USB 3.0 connection, USB bus power supported)

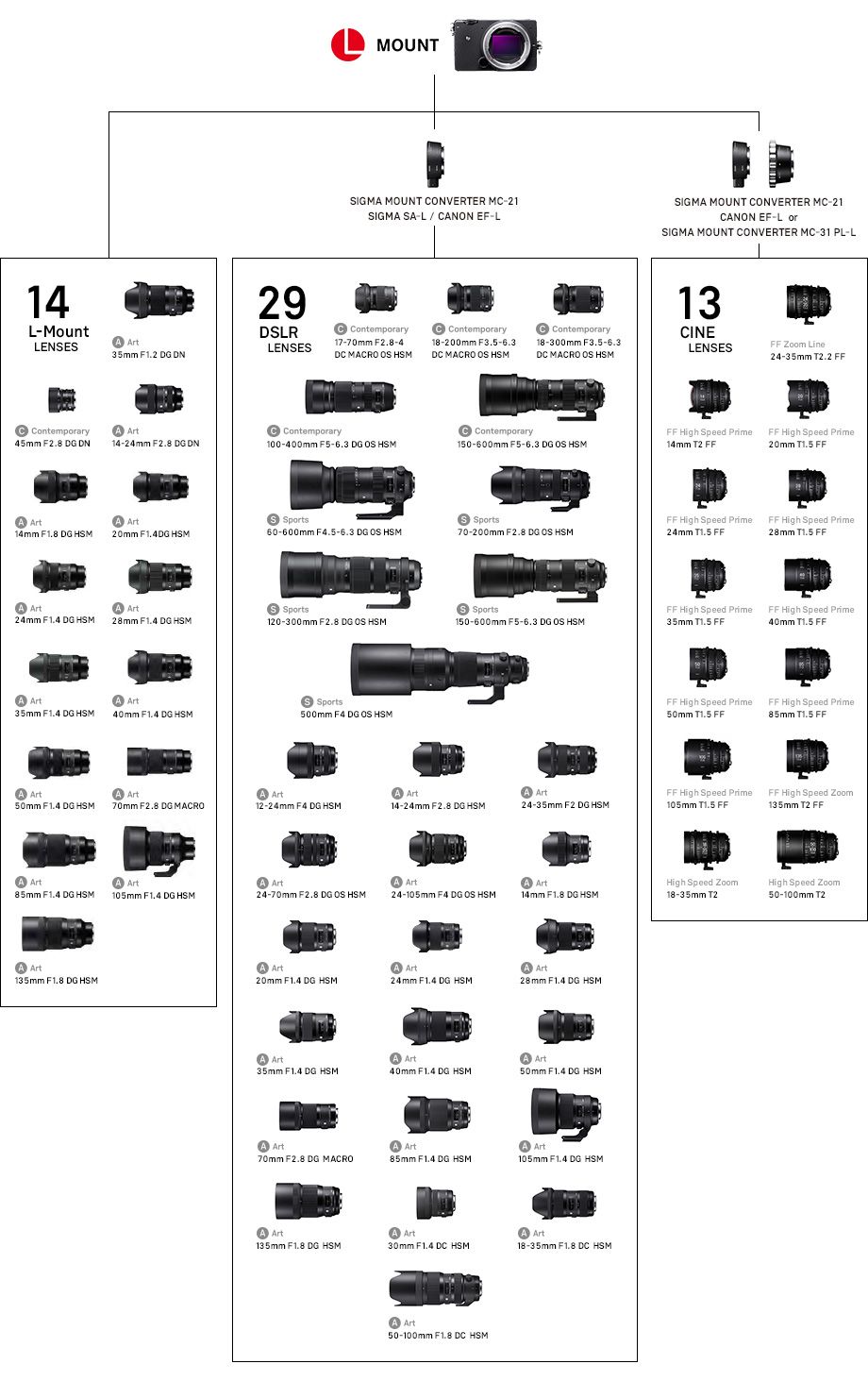

Lens Mount

L-Mount

Type

35mm full-frame (35.9mm x 23.9mm) Back-illuminated Bayer CMOS sensor

Camera effective pixels / Total pixels

Approx. 24.6MP（6,072 × 4,056）/ Approx. 25.3MP（6,104 × 4,142）

Aspect Ratio

3:2

Color, filter System

RGB Primary color filter

Still Image File Format

Lossless compression RAW(DNG) data12/14 bit, JPEG(Exif2.3), RAW(DNG)+JPEG:recording is possible

Image aspect ratio

[21:9] / [16:9] / [3:2] / [A Size (√2:1)] / [4:3] / [7:6] / [1:1]

HIGH：6000×4000 (3840x2560)
LOW：3008x2000 (1920x1280)

*() In DC Clop Mode

[21:9]

• HIGH：6,000×2,576 (3,840×1,648)
• MED：4,240×1,824 (2,736×1,168)
• LOW：3,008×1,288 (1,920×824)

[3:2]

• HIGH：6,000×4,000 (3,840×2,560)
• MED：4,240×2,832 (2,736×1,824)
• LOW：3,008×2,000 (1,920×1,280)

[4:3]

• HIGH：5,344×4,000 (3,408×2,560)
• MED：3,776×2,832 (2,416×1,824)
• LOW：2,672×2,000 (1,712×1,280)

[1:1]

• HIGH：4,000×4,000 (2,560×2,560)
• MED：2,832×2,832 (1,824×1,824)
• LOW：2,000×2,000 (1,280×1,280)

[16:9]

• HIGH：6,000×3,376 (3,840×2,160)
• MED：4,240×2,392 (2,736×1,536)
• LOW：3,008×1,688 (1,920×1,080)

[A Size (√2:1)]

• HIGH：5,664×4,000 (3,616×2,560)
• MED：4,000×2,832 (2,560×1,824)
• LOW：2,832×2,000 (1,808×1,280)

[7:6]

• HIGH：4,960×4,000 (3,184×2,560)
• MED：3,520×2,832 (2,272×1,824)
• LOW：2,480×2,000 (1,584×1,280)

Movie Format

CinemaDNG（8bit / 10bit/ 12bit） / MOV：H.264 (ALL-I/ GOP)

Bit rate and Supported media

Audio Format

Linear PCM (2ch 48kHz/16bit)

Recording Pixels / Frame Rate

3,840×2,160 (UHD 4K) / 23.98p, 25p, 29.97p, FHD(1,920x1,080) / 23.98p, 25p, 29.97p, 59.94p, 100p, 119.88p

Continuous recording time

Up to 2h

Cinema DNG recording media limits

SD card ：UHS-II UHD 8bit under 25fps, FHD 12bit under 60fps Portable SSD：UHD 12bit 30fps, FHD 12bit 100fps or less, 10bit and 8bit 120fps or less^** When using our recommended recording media

Movie Format

HDMI Loop out “External recorder record: ATOMOS Ninja Inferno, Blackmagic Video Assist 4K supported
HDMI RAW output “Externai recorder record: ATOMOS Ninja V, Blackmagic Video Assist 12G supported

Audio Format

Linear PCM (2ch 48kHz/16bit)

File Size / Frame Rate

4,096×2,160（DCI 4K） 12bit RAW 24fps
3,840×2,160 (UHD 4K) / 4:2:2 8bit 29.97p / 25p / 23.98p
1,920x1,080 (FHD) / 4:2:2 8bit 119.88p / 100p / 59.94p / 50p / 29.97p / 25p / 23.98p

Auto Format / Focus Mode

Contrast detection system, Single AF, Continuous AF (with moving object prediction function), Manual Focus

AF Measurement Distance
Detection Range / AF mode

-5EV～18EV(F1.4：ISO100) / Auto, 49-points selection mode, Free Movement mode, Face/Eye Detection AF mode, Tracking AF mode

AF Lock

Half-press the shutter button, or press the AEL button (setting change required）

Other Focus Functions

AF+MF, MF Assist, MF Guide, Focus Peaking, Release Focus Function, AF-ON, Quick AF, Pre-AF, AF during Image Magnification

Metering System

Evaluative, Spot, Center Weighted Average

Metering Range

-5～18EV (50mm F1.4: ISO100)

Still Image Shooting Mode

(P) Program AE (Program Shift is possible), (S) Shutter Speed Priority AE, (A) Aperture Priority AE, (M) Manual

Movie Shooting Mode

(P) Program AE, (S) Shutter Speed Priority AE, (A) Aperture Priority AE, (M) Manual

ISO Sensitivity

ISO 100-25600, Expanded sensitivity ISO 6, 12, 25, 50, 51200, 102400

Exposure Compensation

±5EV (in 1/3-stop increments) : ±3EV at movie recording

AE Lock

Half-press the shutter button, or press the AEL button (setting change required).

Exposure Bracket

3-frame/5-frame stage exposure 3EV (1/3 Step, Standard→Underexposure→Overexposure) (Sequence changeable)

Shutter Type

Electronic shutter

Shutter Speed

30 - 1/8,000sec., Bulb (5 minutes max)※ Up to 1/4,000sec. when using electronic image stabilization

Drive Modes

Single shooting, Continuous shooting（H：approx. 18shots/sec、 M：approx. 5shots/sec、L：approx. 3shots/sec）, Self-timer (2sec. / 10sec.), Interval-timer

Maximum number of shots

HIGH: 12frame, MED: 12frame, LOW: 24frame

Type / Coverage

TFT color LCD monitor Aspect Ratio 3:2, 3.15, Approx. 2,100,000 dots / Electrostatic capacitance system touch panel / Approx. 100%

Light Emission Mode

S-TTL automatic light control, Manual, Wireless flash, Multi-emission Flash (when to use external flash)

Flash Mode

Red-eye effect reduction / Slow synchronization, 2nd Curtain synchronization

Exposure control

Max. ±3EV in 1/3EV-step increments

Flash Tuning Speed

Max. 1/30sec.* 1/15 sec. or less at 14bit

External Flash Support

Available when the Hot Shoe Unit HU-11(supplied with this product) is mounted.* S-TTL, Wireless support, Xcontact

Color Mode

13types
( Standard, Vivid, Neutral, Portrait, Landscape, Cinema, Teal & Orange, Sunset Red, Forest Green, FOV Classic Blue, FOV Classic Yellow, Monochrome, Off )

Recording Mode

STILL Mode: FillLight / HDR shooting
CINE Mode: Still image shooting during movie shooting / HDR shooting / Director's view finder

Playback Mode

STILL: Mode In-camera DNG Development
CINE Mode: Cinemagraph / still image cut-out

Type

Stereo microphone, Monaural speaker

Display Language

English / Japanese / German / French / Spanish / Italian / Simplified Chinese / Traditional Chinese / Korean / Russian / Dutch / Polish / Portuguese / Danish / Swedish / Norwegian / Finnish

USB

USB3.1 GEN1 Type C

HDMI

Type D (Ver.1.4)

Release Terminal

Also used as an external microphone terminal

Time Code

Aiso used as an external microphone terminal

External Microphone

Φ3.5mm stereo mini jack (Plug-in power support)

Headphone output

Unavailable

Flash-synchro Terminal

Dedicated terminal (with hot shoe unit HU-11 (supplied with this product) mounted)

Power

Li-ion Battery Pack BP-51 *USB power supply available (when the power is turned off)

Still images

Approx. 280 images (at 23℃ according to CIPA standard)

Movie | continuous recording

Approx. 70 min

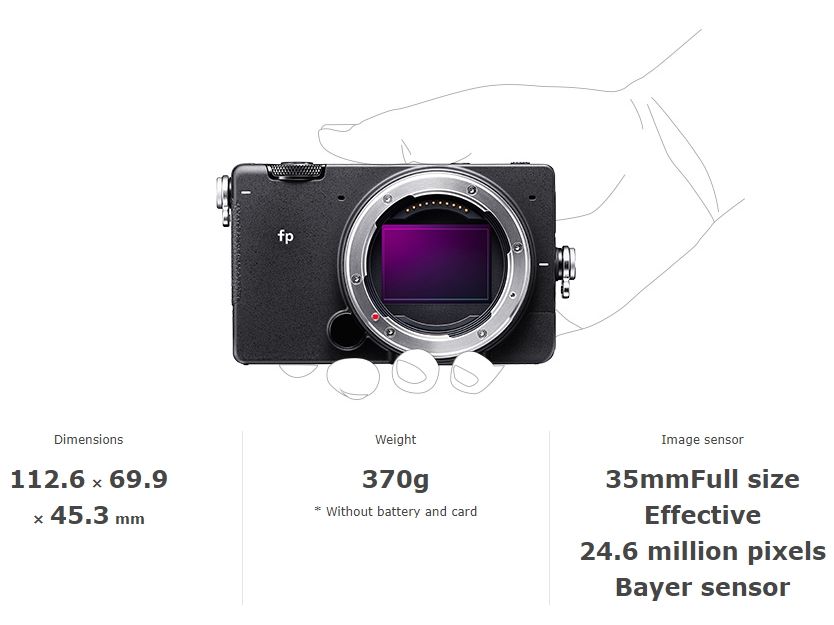

Dimensions

112.6 x 69.9 x 45.3mm

Weight

422g(including battery and SDcard), 370g(Camera Body Only)
